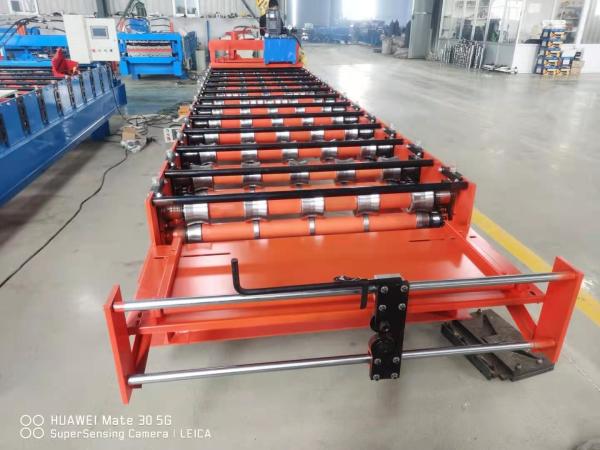

Granary And Barn Corrugated Sheet Roll Forming Machine With
Function Curving
| item | corrugated sheet roll forming machine |
| motor | servo motor |
| capacity | 5-8 tons per days |
| chain | 2 inches |
| weight | 8 tons |
| control | computer automatic |
Components and Technical Specification
Manual Uncoiler
It is used to support the steel coil and realize the uncoiling by
means of rotatory movement. The steel coil is uncoiled manually.
The capacity of this uncoiler is 8 Ton, and it is capable for most
of the cases. This equipment is suitable to process the steel coils
with 508mm of ID.
Feeding Table
Put the raw material(steel plate) through the beach to manufacture
and process, it can guarantee that the products are neat, parallel
and everything is uniformity. Please refer to the equipment
regulation to know the function of locate angle iron.
Main Roll Forming Machine
Material of rollers:45# steel,roller surfaces polishing, hard
plating , The polished surface and the heat treatment towards the
molds also can keep the molding plate surface smooth and not easy
to be marked when it is being stamped.
Hydraulic System
Power:4kw,Hydraulic oil: 40#
hydraulic oil into the hydraulic oil tank ,the pump drive the
cutter machine to begin the cutting job.
Computer Control Cabinet
The target piece`s length is adjustable and digit of it can be
adjusted. Computed mode has two modes: automatic and manual one.
The system is easy to operate and use
PLC:Delta
Shearing Mechanism
It adopts the hydraulic drive and automatic location to decide the
dimension and cut the target products.Material of blades:
Cr12,quenching treatment.
Granary and barn corrugated roll forming machine is use for product
the corrugated sheet for assemble the barn or granary , first
the roll forming machine forming the corrugated then the machine
curving the sheet in rounded , people use the rounded corrugated
sheet assemble into barn , the machine have the function punching
holes for fix screws.
the barn use for store the grain, or use for making the metal
fishpond . the material can be galvanized sheet or stainless steel
coil .
